usbuser.h ファイル

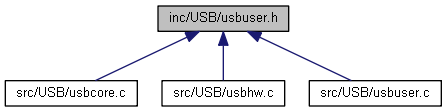

被依存関係図:

[ソースコード]

マクロ定義
#define	USB_EVT_SETUP   1 /* Setup Packet */
#define	USB_EVT_OUT   2 /* OUT Packet */
#define	USB_EVT_IN   3 /* IN Packet */
#define	USB_EVT_OUT_NAK   4 /* OUT Packet - Not Acknowledged */
#define	USB_EVT_IN_NAK   5 /* IN Packet - Not Acknowledged */
#define	USB_EVT_OUT_STALL   6 /* OUT Packet - Stalled */
#define	USB_EVT_IN_STALL   7 /* IN Packet - Stalled */

関数
void	USB_Power_Event (uint32_t power)
void	USB_Reset_Event (void)
void	USB_Suspend_Event (void)
void	USB_Resume_Event (void)
void	USB_WakeUp_Event (void)
void	USB_SOF_Event (void)
void	USB_Error_Event (uint32_t error)
void	USB_EndPoint0 (uint32_t event)
void	USB_EndPoint1 (uint32_t event)
void	USB_EndPoint2 (uint32_t event)
void	USB_EndPoint3 (uint32_t event)
void	USB_EndPoint4 (uint32_t event)
void	USB_Configure_Event (void)
void	USB_Interface_Event (void)
void	USB_Feature_Event (void)

変数
void(*const	USB_P_EP [USB_LOGIC_EP_NUM])(uint32_t event)

マクロ定義詳解

USB_EVT_IN

#define USB_EVT_IN   3 /* IN Packet */

USB_EVT_IN_NAK

#define USB_EVT_IN_NAK   5 /* IN Packet - Not Acknowledged */

USB_EVT_IN_STALL

#define USB_EVT_IN_STALL   7 /* IN Packet - Stalled */

USB_EVT_OUT

#define USB_EVT_OUT   2 /* OUT Packet */

USB_EVT_OUT_NAK

#define USB_EVT_OUT_NAK   4 /* OUT Packet - Not Acknowledged */

USB_EVT_OUT_STALL

#define USB_EVT_OUT_STALL   6 /* OUT Packet - Stalled */

USB_EVT_SETUP

#define USB_EVT_SETUP   1 /* Setup Packet */

関数詳解

USB_Configure_Event()

void USB_Configure_Event

(

void

)

被呼び出し関係図:

USB_EndPoint0()

void USB_EndPoint0

(

uint32_t

event

)

呼び出し関係図:

USB_EndPoint1()

void USB_EndPoint1

(

uint32_t

event

)

呼び出し関係図:

USB_EndPoint2()

void USB_EndPoint2

(

uint32_t

event

)

USB_EndPoint3()

void USB_EndPoint3

(

uint32_t

event

)

呼び出し関係図:

USB_EndPoint4()

void USB_EndPoint4

(

uint32_t

event

)

USB_Error_Event()

void USB_Error_Event

(

uint32_t

error

)

被呼び出し関係図:

USB_Feature_Event()

void USB_Feature_Event

(

void

)

被呼び出し関係図:

USB_Interface_Event()

void USB_Interface_Event

(

void

)

被呼び出し関係図:

USB_Power_Event()

void USB_Power_Event

(

uint32_t

power

)

被呼び出し関係図:

USB_Reset_Event()

void USB_Reset_Event

(

void

)

被呼び出し関係図:

USB_Resume_Event()

void USB_Resume_Event

(

void

)

被呼び出し関係図:

USB_SOF_Event()

void USB_SOF_Event

(

void

)

被呼び出し関係図:

USB_Suspend_Event()

void USB_Suspend_Event

(

void

)

被呼び出し関係図:

USB_WakeUp_Event()

void USB_WakeUp_Event

(

void

)

変数詳解

USB_P_EP

void(* const USB_P_EP[USB_LOGIC_EP_NUM])(uint32_t event)
