usbhw.h ファイル

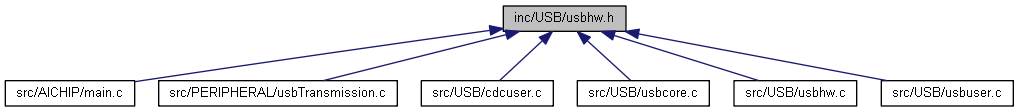

被依存関係図:

[ソースコード]

マクロ定義
#define	USB_ERR_PID   0x0001 /* PID Error */
#define	USB_ERR_UEPKT   0x0002 /* Unexpected Packet */
#define	USB_ERR_DCRC   0x0004 /* Data CRC Error */
#define	USB_ERR_TIMOUT   0x0008 /* Bus Time-out Error */
#define	USB_ERR_EOP   0x0010 /* End of Packet Error */
#define	USB_ERR_B_OVRN   0x0020 /* Buffer Overrun */
#define	USB_ERR_BTSTF   0x0040 /* Bit Stuff Error */
#define	USB_ERR_TGL   0x0080 /* Toggle Bit Error */

関数
void	USBIOClkConfig (void)
void	USB_Init (void)
void	USB_Connect (uint32_t con)
void	USB_Reset (void)
void	USB_Suspend (void)
void	USB_Resume (void)
void	USB_WakeUp (void)
void	USB_WakeUpCfg (uint32_t cfg)
void	USB_SetAddress (uint32_t adr)
void	USB_Configure (uint32_t cfg)
void	USB_ConfigEP (USB_ENDPOINT_DESCRIPTOR *pEPD)
void	USB_DirCtrlEP (uint32_t dir)
void	USB_EnableEP (uint32_t EPNum)
void	USB_DisableEP (uint32_t EPNum)
void	USB_ResetEP (uint32_t EPNum)
void	USB_SetStallEP (uint32_t EPNum)
void	USB_ClrStallEP (uint32_t EPNum)
void	USB_ClearEPBuf (uint32_t EPNum)
uint32_t	USB_ReadEP (uint32_t EPNum, uint8_t *pData)
uint32_t	USB_WriteEP (uint32_t EPNum, uint8_t *pData, uint32_t cnt)
uint32_t	USB_GetFrame (void)
void	USB_IRQHandler (void)
void	USB_IRQ (void)

マクロ定義詳解

USB_ERR_B_OVRN

#define USB_ERR_B_OVRN   0x0020 /* Buffer Overrun */

USB_ERR_BTSTF

#define USB_ERR_BTSTF   0x0040 /* Bit Stuff Error */

USB_ERR_DCRC

#define USB_ERR_DCRC   0x0004 /* Data CRC Error */

USB_ERR_EOP

#define USB_ERR_EOP   0x0010 /* End of Packet Error */

USB_ERR_PID

#define USB_ERR_PID   0x0001 /* PID Error */

USB_ERR_TGL

#define USB_ERR_TGL   0x0080 /* Toggle Bit Error */

USB_ERR_TIMOUT

#define USB_ERR_TIMOUT   0x0008 /* Bus Time-out Error */

USB_ERR_UEPKT

#define USB_ERR_UEPKT   0x0002 /* Unexpected Packet */

関数詳解

USB_ClearEPBuf()

void USB_ClearEPBuf

(

uint32_t

EPNum

)

呼び出し関係図:

USB_ClrStallEP()

void USB_ClrStallEP

(

uint32_t

EPNum

)

呼び出し関係図:

被呼び出し関係図:

USB_ConfigEP()

void USB_ConfigEP

(

USB_ENDPOINT_DESCRIPTOR *

pEPD

)

被呼び出し関係図:

USB_Configure()

void USB_Configure

(

uint32_t

cfg

)

呼び出し関係図:

被呼び出し関係図:

USB_Connect()

void USB_Connect

(

uint32_t

con

)

呼び出し関係図:

被呼び出し関係図:

USB_DirCtrlEP()

void USB_DirCtrlEP

(

uint32_t

dir

)

被呼び出し関係図:

USB_DisableEP()

void USB_DisableEP

(

uint32_t

EPNum

)

呼び出し関係図:

被呼び出し関係図:

USB_EnableEP()

void USB_EnableEP

(

uint32_t

EPNum

)

呼び出し関係図:

被呼び出し関係図:

USB_GetFrame()

uint32_t USB_GetFrame

(

void

)

呼び出し関係図:

USB_Init()

void USB_Init

(

void

)

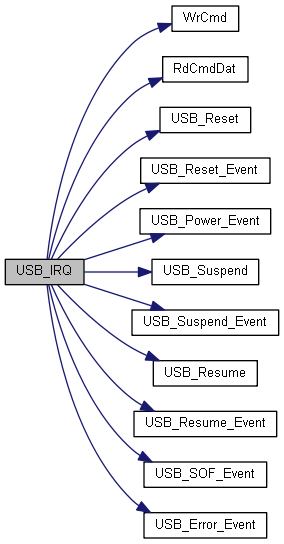

USB_IRQ()

void USB_IRQ

(

void

)

呼び出し関係図:

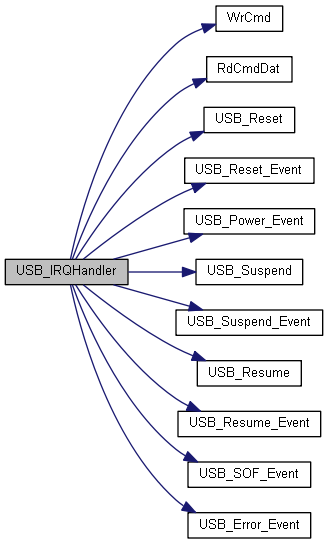

USB_IRQHandler()

void USB_IRQHandler

(

void

)

呼び出し関係図:

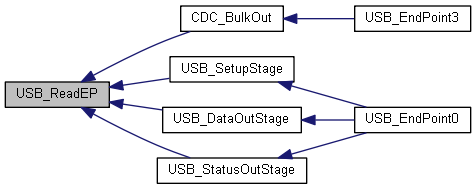

USB_ReadEP()

uint32_t USB_ReadEP	(	uint32_t	EPNum,
		uint8_t *	pData
	)

呼び出し関係図:

被呼び出し関係図:

USB_Reset()

void USB_Reset

(

void

)

被呼び出し関係図:

USB_ResetEP()

void USB_ResetEP

(

uint32_t

EPNum

)

呼び出し関係図:

被呼び出し関係図:

USB_Resume()

void USB_Resume

(

void

)

被呼び出し関係図:

USB_SetAddress()

void USB_SetAddress

(

uint32_t

adr

)

呼び出し関係図:

被呼び出し関係図:

USB_SetStallEP()

void USB_SetStallEP

(

uint32_t

EPNum

)

呼び出し関係図:

被呼び出し関係図:

USB_Suspend()

void USB_Suspend

(

void

)

被呼び出し関係図:

USB_WakeUp()

void USB_WakeUp

(

void

)

呼び出し関係図:

USB_WakeUpCfg()

void USB_WakeUpCfg

(

uint32_t

cfg

)

被呼び出し関係図:

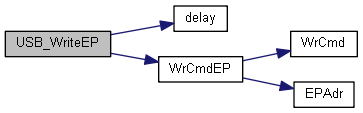

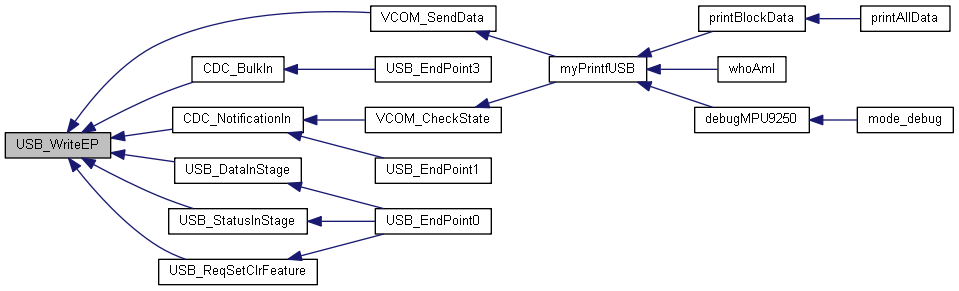

USB_WriteEP()

uint32_t USB_WriteEP	(	uint32_t	EPNum,
		uint8_t *	pData,
		uint32_t	cnt
	)

呼び出し関係図:

被呼び出し関係図:

USBIOClkConfig()

void USBIOClkConfig

(

void

)

被呼び出し関係図:
