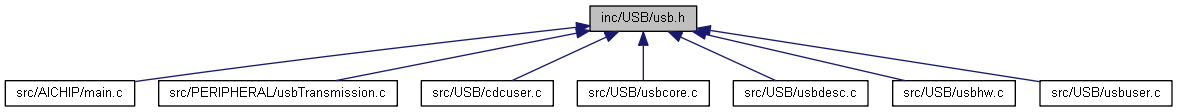

被依存関係図:

データ構造
union	__attribute__

union	_REQUEST_TYPE

struct	_REQUEST_TYPE::_BM

struct	_BM

struct	_USB_SETUP_PACKET

struct	_USB_DEVICE_DESCRIPTOR

struct	_USB_DEVICE_QUALIFIER_DESCRIPTOR

struct	_USB_CONFIGURATION_DESCRIPTOR

struct	_USB_INTERFACE_DESCRIPTOR

struct	_USB_ENDPOINT_DESCRIPTOR

struct	_USB_STRING_DESCRIPTOR

struct	_USB_COMMON_DESCRIPTOR

マクロ定義
#define	REQUEST_HOST_TO_DEVICE 0

#define	REQUEST_DEVICE_TO_HOST 1

#define	REQUEST_STANDARD 0

#define	REQUEST_CLASS 1

#define	REQUEST_VENDOR 2

#define	REQUEST_RESERVED 3

#define	REQUEST_TO_DEVICE 0

#define	REQUEST_TO_INTERFACE 1

#define	REQUEST_TO_ENDPOINT 2

#define	REQUEST_TO_OTHER 3

#define	USB_REQUEST_GET_STATUS 0

#define	USB_REQUEST_CLEAR_FEATURE 1

#define	USB_REQUEST_SET_FEATURE 3

#define	USB_REQUEST_SET_ADDRESS 5

#define	USB_REQUEST_GET_DESCRIPTOR 6

#define	USB_REQUEST_SET_DESCRIPTOR 7

#define	USB_REQUEST_GET_CONFIGURATION 8

#define	USB_REQUEST_SET_CONFIGURATION 9

#define	USB_REQUEST_GET_INTERFACE 10

#define	USB_REQUEST_SET_INTERFACE 11

#define	USB_REQUEST_SYNC_FRAME 12

#define	USB_GETSTATUS_SELF_POWERED 0x01

#define	USB_GETSTATUS_REMOTE_WAKEUP 0x02

#define	USB_GETSTATUS_ENDPOINT_STALL 0x01

#define	USB_FEATURE_ENDPOINT_STALL 0

#define	USB_FEATURE_REMOTE_WAKEUP 1

#define	USB_DEVICE_DESCRIPTOR_TYPE 1

#define	USB_CONFIGURATION_DESCRIPTOR_TYPE 2

#define	USB_STRING_DESCRIPTOR_TYPE 3

#define	USB_INTERFACE_DESCRIPTOR_TYPE 4

#define	USB_ENDPOINT_DESCRIPTOR_TYPE 5

#define	USB_DEVICE_QUALIFIER_DESCRIPTOR_TYPE 6

#define	USB_OTHER_SPEED_CONFIG_DESCRIPTOR_TYPE 7

#define	USB_INTERFACE_POWER_DESCRIPTOR_TYPE 8

#define	USB_OTG_DESCRIPTOR_TYPE 9

#define	USB_DEBUG_DESCRIPTOR_TYPE 10

#define	USB_INTERFACE_ASSOCIATION_DESCRIPTOR_TYPE 11

#define	USB_DEVICE_CLASS_RESERVED 0x00

#define	USB_DEVICE_CLASS_AUDIO 0x01

#define	USB_DEVICE_CLASS_COMMUNICATIONS 0x02

#define	USB_DEVICE_CLASS_HUMAN_INTERFACE 0x03

#define	USB_DEVICE_CLASS_MONITOR 0x04

#define	USB_DEVICE_CLASS_PHYSICAL_INTERFACE 0x05

#define	USB_DEVICE_CLASS_POWER 0x06

#define	USB_DEVICE_CLASS_PRINTER 0x07

#define	USB_DEVICE_CLASS_STORAGE 0x08

#define	USB_DEVICE_CLASS_HUB 0x09

#define	USB_DEVICE_CLASS_MISCELLANEOUS 0xEF

#define	USB_DEVICE_CLASS_VENDOR_SPECIFIC 0xFF

#define	USB_CONFIG_POWERED_MASK 0x40

#define	USB_CONFIG_BUS_POWERED 0x80

#define	USB_CONFIG_SELF_POWERED 0xC0

#define	USB_CONFIG_REMOTE_WAKEUP 0x20

#define	USB_CONFIG_POWER_MA(mA) ((mA)/2)

#define	USB_ENDPOINT_DIRECTION_MASK 0x80

#define	USB_ENDPOINT_OUT(addr) ((addr) \| 0x00)

#define	USB_ENDPOINT_IN(addr) ((addr) \| 0x80)

#define	USB_ENDPOINT_TYPE_MASK 0x03

#define	USB_ENDPOINT_TYPE_CONTROL 0x00

#define	USB_ENDPOINT_TYPE_ISOCHRONOUS 0x01

#define	USB_ENDPOINT_TYPE_BULK 0x02

#define	USB_ENDPOINT_TYPE_INTERRUPT 0x03

#define	USB_ENDPOINT_SYNC_MASK 0x0C

#define	USB_ENDPOINT_SYNC_NO_SYNCHRONIZATION 0x00

#define	USB_ENDPOINT_SYNC_ASYNCHRONOUS 0x04

#define	USB_ENDPOINT_SYNC_ADAPTIVE 0x08

#define	USB_ENDPOINT_SYNC_SYNCHRONOUS 0x0C

#define	USB_ENDPOINT_USAGE_MASK 0x30

#define	USB_ENDPOINT_USAGE_DATA 0x00

#define	USB_ENDPOINT_USAGE_FEEDBACK 0x10

#define	USB_ENDPOINT_USAGE_IMPLICIT_FEEDBACK 0x20

#define	USB_ENDPOINT_USAGE_RESERVED 0x30

関数
union _REQUEST_TYPE	__attribute__ ((packed)) REQUEST_TYPE

変数
typedef	__attribute__

uint8_t	L

uint8_t	H

uint8_t	Recipient

uint8_t	Type

uint8_t	Dir

uint8_t	B

REQUEST_TYPE	bmRequestType

uint8_t	bRequest

WORD_BYTE	wValue

WORD_BYTE	wIndex

uint16_t	wLength

uint8_t	bLength

uint8_t	bDescriptorType

uint16_t	bcdUSB

uint8_t	bDeviceClass

uint8_t	bDeviceSubClass

uint8_t	bDeviceProtocol

uint8_t	bMaxPacketSize0

uint16_t	idVendor

uint16_t	idProduct

uint16_t	bcdDevice

uint8_t	iManufacturer

uint8_t	iProduct

uint8_t	iSerialNumber

uint8_t	bNumConfigurations

uint8_t	bReserved

uint16_t	wTotalLength

uint8_t	bNumInterfaces

uint8_t	bConfigurationValue

uint8_t	iConfiguration

uint8_t	bmAttributes

uint8_t	bMaxPower

uint8_t	bInterfaceNumber

uint8_t	bAlternateSetting

uint8_t	bNumEndpoints

uint8_t	bInterfaceClass

uint8_t	bInterfaceSubClass

uint8_t	bInterfaceProtocol

uint8_t	iInterface

uint8_t	bEndpointAddress

uint16_t	wMaxPacketSize

uint8_t	bInterval

uint16_t	bString

マクロ定義詳解

◆ REQUEST_CLASS

#define REQUEST_CLASS 1

◆ REQUEST_DEVICE_TO_HOST

#define REQUEST_DEVICE_TO_HOST 1

◆ REQUEST_HOST_TO_DEVICE

#define REQUEST_HOST_TO_DEVICE 0

◆ REQUEST_RESERVED

#define REQUEST_RESERVED 3

◆ REQUEST_STANDARD

#define REQUEST_STANDARD 0

◆ REQUEST_TO_DEVICE

#define REQUEST_TO_DEVICE 0

◆ REQUEST_TO_ENDPOINT

#define REQUEST_TO_ENDPOINT 2

◆ REQUEST_TO_INTERFACE

#define REQUEST_TO_INTERFACE 1

◆ REQUEST_TO_OTHER

#define REQUEST_TO_OTHER 3

◆ REQUEST_VENDOR

#define REQUEST_VENDOR 2

◆ USB_CONFIG_BUS_POWERED

#define USB_CONFIG_BUS_POWERED 0x80

◆ USB_CONFIG_POWER_MA

#define USB_CONFIG_POWER_MA ( mA ) ((mA)/2)

◆ USB_CONFIG_POWERED_MASK

#define USB_CONFIG_POWERED_MASK 0x40

◆ USB_CONFIG_REMOTE_WAKEUP

#define USB_CONFIG_REMOTE_WAKEUP 0x20

◆ USB_CONFIG_SELF_POWERED

#define USB_CONFIG_SELF_POWERED 0xC0

◆ USB_CONFIGURATION_DESCRIPTOR_TYPE

#define USB_CONFIGURATION_DESCRIPTOR_TYPE 2

◆ USB_DEBUG_DESCRIPTOR_TYPE

#define USB_DEBUG_DESCRIPTOR_TYPE 10

◆ USB_DEVICE_CLASS_AUDIO

#define USB_DEVICE_CLASS_AUDIO 0x01

◆ USB_DEVICE_CLASS_COMMUNICATIONS

#define USB_DEVICE_CLASS_COMMUNICATIONS 0x02

◆ USB_DEVICE_CLASS_HUB

#define USB_DEVICE_CLASS_HUB 0x09

◆ USB_DEVICE_CLASS_HUMAN_INTERFACE

#define USB_DEVICE_CLASS_HUMAN_INTERFACE 0x03

◆ USB_DEVICE_CLASS_MISCELLANEOUS

#define USB_DEVICE_CLASS_MISCELLANEOUS 0xEF

◆ USB_DEVICE_CLASS_MONITOR

#define USB_DEVICE_CLASS_MONITOR 0x04

◆ USB_DEVICE_CLASS_PHYSICAL_INTERFACE

#define USB_DEVICE_CLASS_PHYSICAL_INTERFACE 0x05

◆ USB_DEVICE_CLASS_POWER

#define USB_DEVICE_CLASS_POWER 0x06

◆ USB_DEVICE_CLASS_PRINTER

#define USB_DEVICE_CLASS_PRINTER 0x07

◆ USB_DEVICE_CLASS_RESERVED

#define USB_DEVICE_CLASS_RESERVED 0x00

◆ USB_DEVICE_CLASS_STORAGE

#define USB_DEVICE_CLASS_STORAGE 0x08

◆ USB_DEVICE_CLASS_VENDOR_SPECIFIC

#define USB_DEVICE_CLASS_VENDOR_SPECIFIC 0xFF

◆ USB_DEVICE_DESCRIPTOR_TYPE

#define USB_DEVICE_DESCRIPTOR_TYPE 1

◆ USB_DEVICE_QUALIFIER_DESCRIPTOR_TYPE

#define USB_DEVICE_QUALIFIER_DESCRIPTOR_TYPE 6

◆ USB_ENDPOINT_DESCRIPTOR_TYPE

#define USB_ENDPOINT_DESCRIPTOR_TYPE 5

◆ USB_ENDPOINT_DIRECTION_MASK

#define USB_ENDPOINT_DIRECTION_MASK 0x80

◆ USB_ENDPOINT_IN

#define USB_ENDPOINT_IN ( addr ) ((addr) | 0x80)

◆ USB_ENDPOINT_OUT

#define USB_ENDPOINT_OUT ( addr ) ((addr) | 0x00)

◆ USB_ENDPOINT_SYNC_ADAPTIVE

#define USB_ENDPOINT_SYNC_ADAPTIVE 0x08

◆ USB_ENDPOINT_SYNC_ASYNCHRONOUS

#define USB_ENDPOINT_SYNC_ASYNCHRONOUS 0x04

◆ USB_ENDPOINT_SYNC_MASK

#define USB_ENDPOINT_SYNC_MASK 0x0C

◆ USB_ENDPOINT_SYNC_NO_SYNCHRONIZATION

#define USB_ENDPOINT_SYNC_NO_SYNCHRONIZATION 0x00

◆ USB_ENDPOINT_SYNC_SYNCHRONOUS

#define USB_ENDPOINT_SYNC_SYNCHRONOUS 0x0C

◆ USB_ENDPOINT_TYPE_BULK

#define USB_ENDPOINT_TYPE_BULK 0x02

◆ USB_ENDPOINT_TYPE_CONTROL

#define USB_ENDPOINT_TYPE_CONTROL 0x00

◆ USB_ENDPOINT_TYPE_INTERRUPT

#define USB_ENDPOINT_TYPE_INTERRUPT 0x03

◆ USB_ENDPOINT_TYPE_ISOCHRONOUS

#define USB_ENDPOINT_TYPE_ISOCHRONOUS 0x01

◆ USB_ENDPOINT_TYPE_MASK

#define USB_ENDPOINT_TYPE_MASK 0x03

◆ USB_ENDPOINT_USAGE_DATA

#define USB_ENDPOINT_USAGE_DATA 0x00

◆ USB_ENDPOINT_USAGE_FEEDBACK

#define USB_ENDPOINT_USAGE_FEEDBACK 0x10

◆ USB_ENDPOINT_USAGE_IMPLICIT_FEEDBACK

#define USB_ENDPOINT_USAGE_IMPLICIT_FEEDBACK 0x20

◆ USB_ENDPOINT_USAGE_MASK

#define USB_ENDPOINT_USAGE_MASK 0x30

◆ USB_ENDPOINT_USAGE_RESERVED

#define USB_ENDPOINT_USAGE_RESERVED 0x30

◆ USB_FEATURE_ENDPOINT_STALL

#define USB_FEATURE_ENDPOINT_STALL 0

◆ USB_FEATURE_REMOTE_WAKEUP

#define USB_FEATURE_REMOTE_WAKEUP 1

◆ USB_GETSTATUS_ENDPOINT_STALL

#define USB_GETSTATUS_ENDPOINT_STALL 0x01

◆ USB_GETSTATUS_REMOTE_WAKEUP

#define USB_GETSTATUS_REMOTE_WAKEUP 0x02

◆ USB_GETSTATUS_SELF_POWERED

#define USB_GETSTATUS_SELF_POWERED 0x01

◆ USB_INTERFACE_ASSOCIATION_DESCRIPTOR_TYPE

#define USB_INTERFACE_ASSOCIATION_DESCRIPTOR_TYPE 11

◆ USB_INTERFACE_DESCRIPTOR_TYPE

#define USB_INTERFACE_DESCRIPTOR_TYPE 4

◆ USB_INTERFACE_POWER_DESCRIPTOR_TYPE

#define USB_INTERFACE_POWER_DESCRIPTOR_TYPE 8

◆ USB_OTG_DESCRIPTOR_TYPE

#define USB_OTG_DESCRIPTOR_TYPE 9

◆ USB_OTHER_SPEED_CONFIG_DESCRIPTOR_TYPE

#define USB_OTHER_SPEED_CONFIG_DESCRIPTOR_TYPE 7

◆ USB_REQUEST_CLEAR_FEATURE

#define USB_REQUEST_CLEAR_FEATURE 1

◆ USB_REQUEST_GET_CONFIGURATION

#define USB_REQUEST_GET_CONFIGURATION 8

◆ USB_REQUEST_GET_DESCRIPTOR

#define USB_REQUEST_GET_DESCRIPTOR 6

◆ USB_REQUEST_GET_INTERFACE

#define USB_REQUEST_GET_INTERFACE 10

◆ USB_REQUEST_GET_STATUS

#define USB_REQUEST_GET_STATUS 0

◆ USB_REQUEST_SET_ADDRESS

#define USB_REQUEST_SET_ADDRESS 5

◆ USB_REQUEST_SET_CONFIGURATION

#define USB_REQUEST_SET_CONFIGURATION 9

◆ USB_REQUEST_SET_DESCRIPTOR

#define USB_REQUEST_SET_DESCRIPTOR 7

◆ USB_REQUEST_SET_FEATURE

#define USB_REQUEST_SET_FEATURE 3

◆ USB_REQUEST_SET_INTERFACE

#define USB_REQUEST_SET_INTERFACE 11

◆ USB_REQUEST_SYNC_FRAME

#define USB_REQUEST_SYNC_FRAME 12

◆ USB_STRING_DESCRIPTOR_TYPE

#define USB_STRING_DESCRIPTOR_TYPE 3

関数詳解

◆ attribute()

union _REQUEST_TYPE __attribute__ ( (packed) )

変数詳解

◆ attribute

__attribute__

◆ B

uint8_t B

◆ bAlternateSetting

uint8_t bAlternateSetting

◆ bcdDevice

uint16_t bcdDevice

◆ bcdUSB

uint16_t bcdUSB

◆ bConfigurationValue

uint8_t bConfigurationValue

◆ bDescriptorType

uint8_t bDescriptorType

◆ bDeviceClass

uint8_t bDeviceClass

◆ bDeviceProtocol

uint8_t bDeviceProtocol

◆ bDeviceSubClass

uint8_t bDeviceSubClass

◆ bEndpointAddress

uint8_t bEndpointAddress

◆ bInterfaceClass

uint8_t bInterfaceClass

◆ bInterfaceNumber

uint8_t bInterfaceNumber

◆ bInterfaceProtocol

uint8_t bInterfaceProtocol

◆ bInterfaceSubClass

uint8_t bInterfaceSubClass

◆ bInterval

uint8_t bInterval

◆ bLength

uint8_t bLength

◆ bmAttributes

uint8_t bmAttributes

◆ bMaxPacketSize0

uint8_t bMaxPacketSize0

◆ bMaxPower

uint8_t bMaxPower

◆ bmRequestType

REQUEST_TYPE bmRequestType

◆ bNumConfigurations

uint8_t bNumConfigurations

◆ bNumEndpoints

uint8_t bNumEndpoints

◆ bNumInterfaces

uint8_t bNumInterfaces

◆ bRequest

uint8_t bRequest

◆ bReserved

uint8_t bReserved

◆ bString

uint16_t bString

◆ Dir

uint8_t Dir

◆ H

uint8_t H

◆ iConfiguration

uint8_t iConfiguration

◆ idProduct

uint16_t idProduct

◆ idVendor

uint16_t idVendor

◆ iInterface

uint8_t iInterface

◆ iManufacturer

uint8_t iManufacturer

◆ iProduct

uint8_t iProduct

◆ iSerialNumber

uint8_t iSerialNumber

◆ L

uint8_t L

◆ Recipient

uint8_t Recipient

◆ Type

uint8_t Type

◆ wIndex

WORD_BYTE wIndex

◆ wLength

uint16_t wLength

◆ wMaxPacketSize

uint16_t wMaxPacketSize

◆ wTotalLength

uint16_t wTotalLength

◆ wValue

WORD_BYTE wValue
