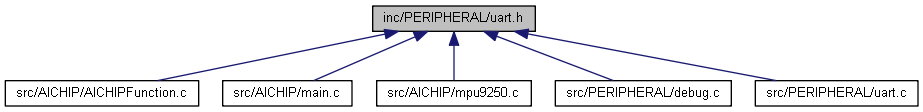

被依存関係図:

マクロ定義
#define	RS485_ENABLED 0

#define	TX_INTERRUPT 0 /* 0 if TX uses polling, 1 interrupt driven. */

#define	MODEM_TEST 0

#define	IER_RBR 0x01

#define	IER_THRE 0x02

#define	IER_RLS 0x04

#define	IIR_PEND 0x01

#define	IIR_RLS 0x03

#define	IIR_RDA 0x02

#define	IIR_CTI 0x06

#define	IIR_THRE 0x01

#define	LSR_RDR 0x01

#define	LSR_OE 0x02

#define	LSR_PE 0x04

#define	LSR_FE 0x08

#define	LSR_BI 0x10

#define	LSR_THRE 0x20

#define	LSR_TEMT 0x40

#define	LSR_RXFE 0x80

#define	BUFSIZE 0x80

#define	RS485_NMMEN (0x1<<0)

#define	RS485_RXDIS (0x1<<1)

#define	RS485_AADEN (0x1<<2)

#define	RS485_SEL (0x1<<3)

#define	RS485_DCTRL (0x1<<4)

#define	RS485_OINV (0x1<<5)

関数
void	UARTInit (uint32_t Baudrate)

void	UART_IRQHandler (void)

void	UARTSend (uint8_t *BufferPtr, uint32_t Length)

マクロ定義詳解

◆ BUFSIZE

#define BUFSIZE 0x80

◆ IER_RBR

#define IER_RBR 0x01

◆ IER_RLS

#define IER_RLS 0x04

◆ IER_THRE

#define IER_THRE 0x02

◆ IIR_CTI

#define IIR_CTI 0x06

◆ IIR_PEND

#define IIR_PEND 0x01

◆ IIR_RDA

#define IIR_RDA 0x02

◆ IIR_RLS

#define IIR_RLS 0x03

◆ IIR_THRE

#define IIR_THRE 0x01

◆ LSR_BI

#define LSR_BI 0x10

◆ LSR_FE

#define LSR_FE 0x08

◆ LSR_OE

#define LSR_OE 0x02

◆ LSR_PE

#define LSR_PE 0x04

◆ LSR_RDR

#define LSR_RDR 0x01

◆ LSR_RXFE

#define LSR_RXFE 0x80

◆ LSR_TEMT

#define LSR_TEMT 0x40

◆ LSR_THRE

#define LSR_THRE 0x20

◆ MODEM_TEST

#define MODEM_TEST 0

◆ RS485_AADEN

#define RS485_AADEN (0x1<<2)

◆ RS485_DCTRL

#define RS485_DCTRL (0x1<<4)

◆ RS485_ENABLED

#define RS485_ENABLED 0

◆ RS485_NMMEN

#define RS485_NMMEN (0x1<<0)

◆ RS485_OINV

#define RS485_OINV (0x1<<5)

◆ RS485_RXDIS

#define RS485_RXDIS (0x1<<1)

◆ RS485_SEL

#define RS485_SEL (0x1<<3)

◆ TX_INTERRUPT

#define TX_INTERRUPT 0 /* 0 if TX uses polling, 1 interrupt driven. */

関数詳解

◆ UART_IRQHandler()

void UART_IRQHandler ( void )

◆ UARTInit()

void UARTInit ( uint32_t Baudrate )

被呼び出し関係図:

◆ UARTSend()

void UARTSend	(	uint8_t *	BufferPtr,
		uint32_t	Length
	)

被呼び出し関係図:
