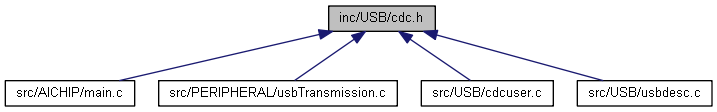

被依存関係図:

データ構造
struct	_CDC_HEADER_DESCRIPTOR

struct	_CDC_CALL_MANAGEMENT_DESCRIPTOR

struct	_CDC_ABSTRACT_CONTROL_MANAGEMENT_DESCRIPTOR

struct	_CDC_UNION_DESCRIPTOR

struct	_CDC_UNION_1SLAVE_DESCRIPTOR

struct	_CDC_LINE_CODING

マクロ定義
#define	CDC_V1_10 0x0110

#define	CDC_COMMUNICATION_INTERFACE_CLASS 0x02

#define	CDC_DIRECT_LINE_CONTROL_MODEL 0x01

#define	CDC_ABSTRACT_CONTROL_MODEL 0x02

#define	CDC_TELEPHONE_CONTROL_MODEL 0x03

#define	CDC_MULTI_CHANNEL_CONTROL_MODEL 0x04

#define	CDC_CAPI_CONTROL_MODEL 0x05

#define	CDC_ETHERNET_NETWORKING_CONTROL_MODEL 0x06

#define	CDC_ATM_NETWORKING_CONTROL_MODEL 0x07

#define	CDC_PROTOCOL_COMMON_AT_COMMANDS 0x01

#define	CDC_DATA_INTERFACE_CLASS 0x0A

#define	CDC_PROTOCOL_ISDN_BRI 0x30

#define	CDC_PROTOCOL_HDLC 0x31

#define	CDC_PROTOCOL_TRANSPARENT 0x32

#define	CDC_PROTOCOL_Q921_MANAGEMENT 0x50

#define	CDC_PROTOCOL_Q921_DATA_LINK 0x51

#define	CDC_PROTOCOL_Q921_MULTIPLEXOR 0x52

#define	CDC_PROTOCOL_V42 0x90

#define	CDC_PROTOCOL_EURO_ISDN 0x91

#define	CDC_PROTOCOL_V24_RATE_ADAPTATION 0x92

#define	CDC_PROTOCOL_CAPI 0x93

#define	CDC_PROTOCOL_HOST_BASED_DRIVER 0xFD

#define	CDC_PROTOCOL_DESCRIBED_IN_PUFD 0xFE

#define	CDC_CS_INTERFACE 0x24

#define	CDC_CS_ENDPOINT 0x25

#define	CDC_HEADER 0x00

#define	CDC_CALL_MANAGEMENT 0x01

#define	CDC_ABSTRACT_CONTROL_MANAGEMENT 0x02

#define	CDC_DIRECT_LINE_MANAGEMENT 0x03

#define	CDC_TELEPHONE_RINGER 0x04

#define	CDC_REPORTING_CAPABILITIES 0x05

#define	CDC_UNION 0x06

#define	CDC_COUNTRY_SELECTION 0x07

#define	CDC_TELEPHONE_OPERATIONAL_MODES 0x08

#define	CDC_USB_TERMINAL 0x09

#define	CDC_NETWORK_CHANNEL 0x0A

#define	CDC_PROTOCOL_UNIT 0x0B

#define	CDC_EXTENSION_UNIT 0x0C

#define	CDC_MULTI_CHANNEL_MANAGEMENT 0x0D

#define	CDC_CAPI_CONTROL_MANAGEMENT 0x0E

#define	CDC_ETHERNET_NETWORKING 0x0F

#define	CDC_ATM_NETWORKING 0x10

#define	CDC_SEND_ENCAPSULATED_COMMAND 0x00

#define	CDC_GET_ENCAPSULATED_RESPONSE 0x01

#define	CDC_SET_COMM_FEATURE 0x02

#define	CDC_GET_COMM_FEATURE 0x03

#define	CDC_CLEAR_COMM_FEATURE 0x04

#define	CDC_SET_AUX_LINE_STATE 0x10

#define	CDC_SET_HOOK_STATE 0x11

#define	CDC_PULSE_SETUP 0x12

#define	CDC_SEND_PULSE 0x13

#define	CDC_SET_PULSE_TIME 0x14

#define	CDC_RING_AUX_JACK 0x15

#define	CDC_SET_LINE_CODING 0x20

#define	CDC_GET_LINE_CODING 0x21

#define	CDC_SET_CONTROL_LINE_STATE 0x22

#define	CDC_SEND_BREAK 0x23

#define	CDC_SET_RINGER_PARMS 0x30

#define	CDC_GET_RINGER_PARMS 0x31

#define	CDC_SET_OPERATION_PARMS 0x32

#define	CDC_GET_OPERATION_PARMS 0x33

#define	CDC_SET_LINE_PARMS 0x34

#define	CDC_GET_LINE_PARMS 0x35

#define	CDC_DIAL_DIGITS 0x36

#define	CDC_SET_UNIT_PARAMETER 0x37

#define	CDC_GET_UNIT_PARAMETER 0x38

#define	CDC_CLEAR_UNIT_PARAMETER 0x39

#define	CDC_GET_PROFILE 0x3A

#define	CDC_SET_ETHERNET_MULTICAST_FILTERS 0x40

#define	CDC_SET_ETHERNET_PMP_FILTER 0x41

#define	CDC_GET_ETHERNET_PMP_FILTER 0x42

#define	CDC_SET_ETHERNET_PACKET_FILTER 0x43

#define	CDC_GET_ETHERNET_STATISTIC 0x44

#define	CDC_SET_ATM_DATA_FORMAT 0x50

#define	CDC_GET_ATM_DEVICE_STATISTICS 0x51

#define	CDC_SET_ATM_DEFAULT_VC 0x52

#define	CDC_GET_ATM_VC_STATISTICS 0x53

#define	CDC_ABSTRACT_STATE 0x01

#define	CDC_COUNTRY_SETTING 0x02

#define	CDC_IDLE_SETTING (1 << 0)

#define	CDC_DATA_MULTPLEXED_STATE (1 << 1)

#define	CDC_DTE_PRESENT (1 << 0)

#define	CDC_ACTIVATE_CARRIER (1 << 1)

#define	CDC_NOTIFICATION_NETWORK_CONNECTION 0x00

#define	CDC_RESPONSE_AVAILABLE 0x01

#define	CDC_AUX_JACK_HOOK_STATE 0x08

#define	CDC_RING_DETECT 0x09

#define	CDC_NOTIFICATION_SERIAL_STATE 0x20

#define	CDC_CALL_STATE_CHANGE 0x28

#define	CDC_LINE_STATE_CHANGE 0x29

#define	CDC_CONNECTION_SPEED_CHANGE 0x2A

#define	CDC_SERIAL_STATE_OVERRUN (1 << 6)

#define	CDC_SERIAL_STATE_PARITY (1 << 5)

#define	CDC_SERIAL_STATE_FRAMING (1 << 4)

#define	CDC_SERIAL_STATE_RING (1 << 3)

#define	CDC_SERIAL_STATE_BREAK (1 << 2)

#define	CDC_SERIAL_STATE_TX_CARRIER (1 << 1)

#define	CDC_SERIAL_STATE_RX_CARRIER (1 << 0)

型定義
typedef USB_SETUP_PACKET	CDC_NOTIFICATION_HEADER

関数
struct _CDC_HEADER_DESCRIPTOR	__attribute__ ((packed)) CDC_HEADER_DESCRIPTOR

変数
uint8_t	bFunctionLength

uint8_t	bDescriptorType

uint8_t	bDescriptorSubtype

uint16_t	bcdCDC

uint8_t	bmCapabilities

uint8_t	bDataInterface

uint8_t	bMasterInterface

CDC_UNION_DESCRIPTOR	sUnion

uint8_t	bSlaveInterfaces [1]

uint32_t	dwDTERate

uint8_t	bCharFormat

uint8_t	bParityType

uint8_t	bDataBits

マクロ定義詳解

◆ CDC_ABSTRACT_CONTROL_MANAGEMENT

#define CDC_ABSTRACT_CONTROL_MANAGEMENT 0x02

◆ CDC_ABSTRACT_CONTROL_MODEL

#define CDC_ABSTRACT_CONTROL_MODEL 0x02

◆ CDC_ABSTRACT_STATE

#define CDC_ABSTRACT_STATE 0x01

◆ CDC_ACTIVATE_CARRIER

#define CDC_ACTIVATE_CARRIER (1 << 1)

◆ CDC_ATM_NETWORKING

#define CDC_ATM_NETWORKING 0x10

◆ CDC_ATM_NETWORKING_CONTROL_MODEL

#define CDC_ATM_NETWORKING_CONTROL_MODEL 0x07

◆ CDC_AUX_JACK_HOOK_STATE

#define CDC_AUX_JACK_HOOK_STATE 0x08

◆ CDC_CALL_MANAGEMENT

#define CDC_CALL_MANAGEMENT 0x01

◆ CDC_CALL_STATE_CHANGE

#define CDC_CALL_STATE_CHANGE 0x28

◆ CDC_CAPI_CONTROL_MANAGEMENT

#define CDC_CAPI_CONTROL_MANAGEMENT 0x0E

◆ CDC_CAPI_CONTROL_MODEL

#define CDC_CAPI_CONTROL_MODEL 0x05

◆ CDC_CLEAR_COMM_FEATURE

#define CDC_CLEAR_COMM_FEATURE 0x04

◆ CDC_CLEAR_UNIT_PARAMETER

#define CDC_CLEAR_UNIT_PARAMETER 0x39

◆ CDC_COMMUNICATION_INTERFACE_CLASS

#define CDC_COMMUNICATION_INTERFACE_CLASS 0x02

◆ CDC_CONNECTION_SPEED_CHANGE

#define CDC_CONNECTION_SPEED_CHANGE 0x2A

◆ CDC_COUNTRY_SELECTION

#define CDC_COUNTRY_SELECTION 0x07

◆ CDC_COUNTRY_SETTING

#define CDC_COUNTRY_SETTING 0x02

◆ CDC_CS_ENDPOINT

#define CDC_CS_ENDPOINT 0x25

◆ CDC_CS_INTERFACE

#define CDC_CS_INTERFACE 0x24

◆ CDC_DATA_INTERFACE_CLASS

#define CDC_DATA_INTERFACE_CLASS 0x0A

◆ CDC_DATA_MULTPLEXED_STATE

#define CDC_DATA_MULTPLEXED_STATE (1 << 1)

◆ CDC_DIAL_DIGITS

#define CDC_DIAL_DIGITS 0x36

◆ CDC_DIRECT_LINE_CONTROL_MODEL

#define CDC_DIRECT_LINE_CONTROL_MODEL 0x01

◆ CDC_DIRECT_LINE_MANAGEMENT

#define CDC_DIRECT_LINE_MANAGEMENT 0x03

◆ CDC_DTE_PRESENT

#define CDC_DTE_PRESENT (1 << 0)

◆ CDC_ETHERNET_NETWORKING

#define CDC_ETHERNET_NETWORKING 0x0F

◆ CDC_ETHERNET_NETWORKING_CONTROL_MODEL

#define CDC_ETHERNET_NETWORKING_CONTROL_MODEL 0x06

◆ CDC_EXTENSION_UNIT

#define CDC_EXTENSION_UNIT 0x0C

◆ CDC_GET_ATM_DEVICE_STATISTICS

#define CDC_GET_ATM_DEVICE_STATISTICS 0x51

◆ CDC_GET_ATM_VC_STATISTICS

#define CDC_GET_ATM_VC_STATISTICS 0x53

◆ CDC_GET_COMM_FEATURE

#define CDC_GET_COMM_FEATURE 0x03

◆ CDC_GET_ENCAPSULATED_RESPONSE

#define CDC_GET_ENCAPSULATED_RESPONSE 0x01

◆ CDC_GET_ETHERNET_PMP_FILTER

#define CDC_GET_ETHERNET_PMP_FILTER 0x42

◆ CDC_GET_ETHERNET_STATISTIC

#define CDC_GET_ETHERNET_STATISTIC 0x44

◆ CDC_GET_LINE_CODING

#define CDC_GET_LINE_CODING 0x21

◆ CDC_GET_LINE_PARMS

#define CDC_GET_LINE_PARMS 0x35

◆ CDC_GET_OPERATION_PARMS

#define CDC_GET_OPERATION_PARMS 0x33

◆ CDC_GET_PROFILE

#define CDC_GET_PROFILE 0x3A

◆ CDC_GET_RINGER_PARMS

#define CDC_GET_RINGER_PARMS 0x31

◆ CDC_GET_UNIT_PARAMETER

#define CDC_GET_UNIT_PARAMETER 0x38

◆ CDC_HEADER

#define CDC_HEADER 0x00

◆ CDC_IDLE_SETTING

#define CDC_IDLE_SETTING (1 << 0)

◆ CDC_LINE_STATE_CHANGE

#define CDC_LINE_STATE_CHANGE 0x29

◆ CDC_MULTI_CHANNEL_CONTROL_MODEL

#define CDC_MULTI_CHANNEL_CONTROL_MODEL 0x04

◆ CDC_MULTI_CHANNEL_MANAGEMENT

#define CDC_MULTI_CHANNEL_MANAGEMENT 0x0D

◆ CDC_NETWORK_CHANNEL

#define CDC_NETWORK_CHANNEL 0x0A

◆ CDC_NOTIFICATION_NETWORK_CONNECTION

#define CDC_NOTIFICATION_NETWORK_CONNECTION 0x00

◆ CDC_NOTIFICATION_SERIAL_STATE

#define CDC_NOTIFICATION_SERIAL_STATE 0x20

◆ CDC_PROTOCOL_CAPI

#define CDC_PROTOCOL_CAPI 0x93

◆ CDC_PROTOCOL_COMMON_AT_COMMANDS

#define CDC_PROTOCOL_COMMON_AT_COMMANDS 0x01

◆ CDC_PROTOCOL_DESCRIBED_IN_PUFD

#define CDC_PROTOCOL_DESCRIBED_IN_PUFD 0xFE

◆ CDC_PROTOCOL_EURO_ISDN

#define CDC_PROTOCOL_EURO_ISDN 0x91

◆ CDC_PROTOCOL_HDLC

#define CDC_PROTOCOL_HDLC 0x31

◆ CDC_PROTOCOL_HOST_BASED_DRIVER

#define CDC_PROTOCOL_HOST_BASED_DRIVER 0xFD

◆ CDC_PROTOCOL_ISDN_BRI

#define CDC_PROTOCOL_ISDN_BRI 0x30

◆ CDC_PROTOCOL_Q921_DATA_LINK

#define CDC_PROTOCOL_Q921_DATA_LINK 0x51

◆ CDC_PROTOCOL_Q921_MANAGEMENT

#define CDC_PROTOCOL_Q921_MANAGEMENT 0x50

◆ CDC_PROTOCOL_Q921_MULTIPLEXOR

#define CDC_PROTOCOL_Q921_MULTIPLEXOR 0x52

◆ CDC_PROTOCOL_TRANSPARENT

#define CDC_PROTOCOL_TRANSPARENT 0x32

◆ CDC_PROTOCOL_UNIT

#define CDC_PROTOCOL_UNIT 0x0B

◆ CDC_PROTOCOL_V24_RATE_ADAPTATION

#define CDC_PROTOCOL_V24_RATE_ADAPTATION 0x92

◆ CDC_PROTOCOL_V42

#define CDC_PROTOCOL_V42 0x90

◆ CDC_PULSE_SETUP

#define CDC_PULSE_SETUP 0x12

◆ CDC_REPORTING_CAPABILITIES

#define CDC_REPORTING_CAPABILITIES 0x05

◆ CDC_RESPONSE_AVAILABLE

#define CDC_RESPONSE_AVAILABLE 0x01

◆ CDC_RING_AUX_JACK

#define CDC_RING_AUX_JACK 0x15

◆ CDC_RING_DETECT

#define CDC_RING_DETECT 0x09

◆ CDC_SEND_BREAK

#define CDC_SEND_BREAK 0x23

◆ CDC_SEND_ENCAPSULATED_COMMAND

#define CDC_SEND_ENCAPSULATED_COMMAND 0x00

◆ CDC_SEND_PULSE

#define CDC_SEND_PULSE 0x13

◆ CDC_SERIAL_STATE_BREAK

#define CDC_SERIAL_STATE_BREAK (1 << 2)

◆ CDC_SERIAL_STATE_FRAMING

#define CDC_SERIAL_STATE_FRAMING (1 << 4)

◆ CDC_SERIAL_STATE_OVERRUN

#define CDC_SERIAL_STATE_OVERRUN (1 << 6)

◆ CDC_SERIAL_STATE_PARITY

#define CDC_SERIAL_STATE_PARITY (1 << 5)

◆ CDC_SERIAL_STATE_RING

#define CDC_SERIAL_STATE_RING (1 << 3)

◆ CDC_SERIAL_STATE_RX_CARRIER

#define CDC_SERIAL_STATE_RX_CARRIER (1 << 0)

◆ CDC_SERIAL_STATE_TX_CARRIER

#define CDC_SERIAL_STATE_TX_CARRIER (1 << 1)

◆ CDC_SET_ATM_DATA_FORMAT

#define CDC_SET_ATM_DATA_FORMAT 0x50

◆ CDC_SET_ATM_DEFAULT_VC

#define CDC_SET_ATM_DEFAULT_VC 0x52

◆ CDC_SET_AUX_LINE_STATE

#define CDC_SET_AUX_LINE_STATE 0x10

◆ CDC_SET_COMM_FEATURE

#define CDC_SET_COMM_FEATURE 0x02

◆ CDC_SET_CONTROL_LINE_STATE

#define CDC_SET_CONTROL_LINE_STATE 0x22

◆ CDC_SET_ETHERNET_MULTICAST_FILTERS

#define CDC_SET_ETHERNET_MULTICAST_FILTERS 0x40

◆ CDC_SET_ETHERNET_PACKET_FILTER

#define CDC_SET_ETHERNET_PACKET_FILTER 0x43

◆ CDC_SET_ETHERNET_PMP_FILTER

#define CDC_SET_ETHERNET_PMP_FILTER 0x41

◆ CDC_SET_HOOK_STATE

#define CDC_SET_HOOK_STATE 0x11

◆ CDC_SET_LINE_CODING

#define CDC_SET_LINE_CODING 0x20

◆ CDC_SET_LINE_PARMS

#define CDC_SET_LINE_PARMS 0x34

◆ CDC_SET_OPERATION_PARMS

#define CDC_SET_OPERATION_PARMS 0x32

◆ CDC_SET_PULSE_TIME

#define CDC_SET_PULSE_TIME 0x14

◆ CDC_SET_RINGER_PARMS

#define CDC_SET_RINGER_PARMS 0x30

◆ CDC_SET_UNIT_PARAMETER

#define CDC_SET_UNIT_PARAMETER 0x37

◆ CDC_TELEPHONE_CONTROL_MODEL

#define CDC_TELEPHONE_CONTROL_MODEL 0x03

◆ CDC_TELEPHONE_OPERATIONAL_MODES

#define CDC_TELEPHONE_OPERATIONAL_MODES 0x08

◆ CDC_TELEPHONE_RINGER

#define CDC_TELEPHONE_RINGER 0x04

◆ CDC_UNION

#define CDC_UNION 0x06

◆ CDC_USB_TERMINAL

#define CDC_USB_TERMINAL 0x09

◆ CDC_V1_10

#define CDC_V1_10 0x0110

型定義詳解

◆ CDC_NOTIFICATION_HEADER

typedef USB_SETUP_PACKET CDC_NOTIFICATION_HEADER

関数詳解

◆ attribute()

struct _CDC_HEADER_DESCRIPTOR __attribute__ ( (packed) )

変数詳解

◆ bcdCDC

uint16_t bcdCDC

◆ bCharFormat

uint8_t bCharFormat

◆ bDataBits

uint8_t bDataBits

◆ bDataInterface

uint8_t bDataInterface

◆ bDescriptorSubtype

uint8_t bDescriptorSubtype

◆ bDescriptorType

uint8_t bDescriptorType

◆ bFunctionLength

uint8_t bFunctionLength

◆ bMasterInterface

uint8_t bMasterInterface

◆ bmCapabilities

uint8_t bmCapabilities

◆ bParityType

uint8_t bParityType

◆ bSlaveInterfaces

uint8_t bSlaveInterfaces[1]

◆ dwDTERate

uint32_t dwDTERate

◆ sUnion

CDC_UNION_DESCRIPTOR sUnion

データ構造

マクロ定義

型定義

関数

変数
