RT-USB-THP  0
USB出力温湿気圧センサモジュールのサンプルプログラムに関する説明
データ構造 | マクロ定義 | 型定義 | 関数 | 変数
cdcuser.c ファイル
#include "type.h"
#include "usb.h"
#include "usbhw.h"
#include "usbcfg.h"
#include "usbcore.h"
#include "cdc.h"
#include "cdcuser.h"
#include "serial.h"

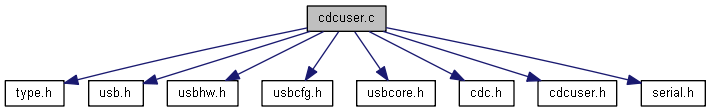

cdcuser.c の依存先関係図:

データ構造

struct  __CDC_BUF_T


マクロ定義

#define CDC_BUF_SIZE   (64)

#define CDC_BUF_MASK   (CDC_BUF_SIZE-1ul)

#define CDC_BUF_RESET(cdcBuf)    (cdcBuf.rdIdx = cdcBuf.wrIdx = 0)

#define CDC_BUF_WR(cdcBuf, dataIn)   (cdcBuf.data[CDC_BUF_MASK & cdcBuf.wrIdx++] = (dataIn))

#define CDC_BUF_RD(cdcBuf)    (cdcBuf.data[CDC_BUF_MASK & cdcBuf.rdIdx++])

#define CDC_BUF_EMPTY(cdcBuf)    (cdcBuf.rdIdx == cdcBuf.wrIdx)

#define CDC_BUF_FULL(cdcBuf)    (cdcBuf.rdIdx == cdcBuf.wrIdx+1)

#define CDC_BUF_COUNT(cdcBuf)    (CDC_BUF_MASK & (cdcBuf.wrIdx - cdcBuf.rdIdx))


型定義

typedef struct __CDC_BUF_T CDC_BUF_T


関数

int CDC_RdOutBuf (char *buffer, const int *length)

int CDC_WrOutBuf (const char *buffer, int *length)

int CDC_OutBufAvailChar (int *availChar)

void CDC_Init (void)

uint32_t CDC_SendEncapsulatedCommand (void)

uint32_t CDC_GetEncapsulatedResponse (void)

uint32_t CDC_SetCommFeature (unsigned short wFeatureSelector)

uint32_t CDC_GetCommFeature (unsigned short wFeatureSelector)

uint32_t CDC_ClearCommFeature (unsigned short wFeatureSelector)

uint32_t CDC_SetLineCoding (void)

uint32_t CDC_GetLineCoding (void)

uint32_t CDC_SetControlLineState (unsigned short wControlSignalBitmap)

uint32_t CDC_SendBreak (unsigned short wDurationOfBreak)

void CDC_BulkIn (void)

void CDC_BulkOut (void)

unsigned short CDC_GetSerialState (void)

void CDC_NotificationIn (void)


変数

volatile unsigned char BulkBufIn [USB_CDC_BUFSIZE]

volatile unsigned char BulkBufOut [USB_CDC_BUFSIZE]

volatile unsigned char NotificationBuf [10]

CDC_LINE_CODING CDC_LineCoding = {115200, 0, 0, 8}

volatile unsigned short CDC_SerialState = 0x0000

unsigned short CDC_DepInEmpty = 1

CDC_BUF_T CDC_OutBuf


マクロ定義詳解

#define CDC_BUF_COUNT (   cdcBuf)    (CDC_BUF_MASK & (cdcBuf.wrIdx - cdcBuf.rdIdx))
#define CDC_BUF_EMPTY (   cdcBuf)    (cdcBuf.rdIdx == cdcBuf.wrIdx)
#define CDC_BUF_FULL (   cdcBuf)    (cdcBuf.rdIdx == cdcBuf.wrIdx+1)
#define CDC_BUF_MASK   (CDC_BUF_SIZE-1ul)
#define CDC_BUF_RD (   cdcBuf)    (cdcBuf.data[CDC_BUF_MASK & cdcBuf.rdIdx++])
#define CDC_BUF_RESET (   cdcBuf)    (cdcBuf.rdIdx = cdcBuf.wrIdx = 0)
#define CDC_BUF_SIZE   (64)
#define CDC_BUF_WR (   cdcBuf,
  dataIn
)    (cdcBuf.data[CDC_BUF_MASK & cdcBuf.wrIdx++] = (dataIn))

型定義詳解

typedef struct __CDC_BUF_T CDC_BUF_T

関数詳解

void CDC_BulkIn ( void  )

呼び出し関係図:

被呼び出し関係図:

void CDC_BulkOut ( void  )

呼び出し関係図:

被呼び出し関係図:

uint32_t CDC_ClearCommFeature ( unsigned short  wFeatureSelector)

被呼び出し関係図:

uint32_t CDC_GetCommFeature ( unsigned short  wFeatureSelector)

被呼び出し関係図:

uint32_t CDC_GetEncapsulatedResponse ( void  )

被呼び出し関係図:

uint32_t CDC_GetLineCoding ( void  )

被呼び出し関係図:

unsigned short CDC_GetSerialState ( void  )

呼び出し関係図:

被呼び出し関係図:

void CDC_Init ( void  )
void CDC_NotificationIn ( void  )

呼び出し関係図:

被呼び出し関係図:

int CDC_OutBufAvailChar ( int *  availChar)
int CDC_RdOutBuf ( char *  buffer,
const int *  length
)
uint32_t CDC_SendBreak ( unsigned short  wDurationOfBreak)

被呼び出し関係図:

uint32_t CDC_SendEncapsulatedCommand ( void  )

被呼び出し関係図:

uint32_t CDC_SetCommFeature ( unsigned short  wFeatureSelector)

被呼び出し関係図:

uint32_t CDC_SetControlLineState ( unsigned short  wControlSignalBitmap)

被呼び出し関係図:

uint32_t CDC_SetLineCoding ( void  )

呼び出し関係図:

被呼び出し関係図:

int CDC_WrOutBuf ( const char *  buffer,
int *  length
)

被呼び出し関係図:

変数詳解

volatile unsigned char BulkBufIn[USB_CDC_BUFSIZE]
volatile unsigned char BulkBufOut[USB_CDC_BUFSIZE]
unsigned short CDC_DepInEmpty = 1
CDC_LINE_CODING CDC_LineCoding = {115200, 0, 0, 8}
CDC_BUF_T CDC_OutBuf
volatile unsigned short CDC_SerialState = 0x0000
volatile unsigned char NotificationBuf[10]
