bme280.c ファイル

#include "bme280.h"
#include "i2c.h"
#include "type.h"
#include "SystemTickTimer.h"

bme280.c の依存先関係図:

マクロ定義
#define	BME280_ADDR   0x76
#define	CONFIG_ADDR   0xF5
#define	CTRL_MEAS_ADDR   0xF4
#define	CTRL_HUM_ADDR   0xF2

関数
void	bme280_init (void)
void	get_rawdata (int *_t_data, int *_p_data, int *_h_data)
void	get_trimdata (void)
int32_t	calib_temparture (int32_t _t_rawdata)
uint32_t	calib_pressure (int _p_rawdata)
double	BME280_compensate_T_double (int32_t adc_T)
double	BME280_compensate_P_double (int32_t adc_P)
double	bme280_compensate_H_double (int32_t adc_H)
unsigned int	calib_humidity (int h_rawdata)
void	whoAmIBME280 ()

変数
volatile uint8_t	I2CMasterBuffer [BUFSIZE]
volatile uint8_t	I2CSlaveBuffer [BUFSIZE]
volatile uint32_t	I2CReadLength
volatile uint32_t	I2CWriteLength
uint16_t	dig_T1
int16_t	dig_T2
int16_t	dig_T3
unsigned short	dig_P1
short	dig_P2
short	dig_P3
short	dig_P4
short	dig_P5
short	dig_P6
short	dig_P7
short	dig_P8
short	dig_P9
unsigned char	dig_H1
short	dig_H2
unsigned char	dig_H3
short	dig_H4
short	dig_H5
char	dig_H6
int32_t	t_fine
int32_t	t_fine_

マクロ定義詳解

#define BME280_ADDR   0x76

#define CONFIG_ADDR   0xF5

#define CTRL_HUM_ADDR   0xF2

#define CTRL_MEAS_ADDR   0xF4

関数詳解

double bme280_compensate_H_double

(

int32_t

adc_H

)

被呼び出し関係図:

double BME280_compensate_P_double

(

int32_t

adc_P

)

被呼び出し関係図:

double BME280_compensate_T_double

(

int32_t

adc_T

)

被呼び出し関係図:

void bme280_init

(

void

)

呼び出し関係図:

被呼び出し関係図:

unsigned int calib_humidity

(

int

h_rawdata

)

uint32_t calib_pressure

(

int

_p_rawdata

)

int32_t calib_temparture

(

int32_t

_t_rawdata

)

void get_rawdata	(	int *	_t_data,
		int *	_p_data,
		int *	_h_data
	)

呼び出し関係図:

被呼び出し関係図:

void get_trimdata

(

void

)

呼び出し関係図:

被呼び出し関係図:

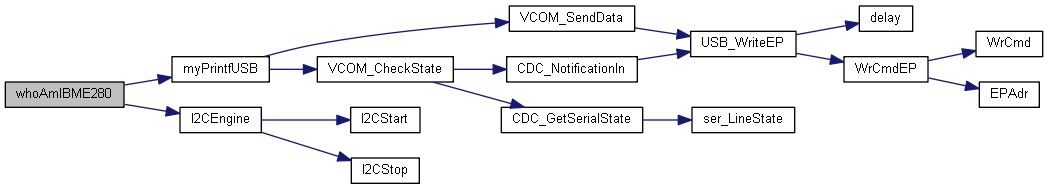

void whoAmIBME280

(

void

)

呼び出し関係図:

変数詳解

unsigned char dig_H1

short dig_H2

unsigned char dig_H3

short dig_H4

short dig_H5

char dig_H6

unsigned short dig_P1

short dig_P2

short dig_P3

short dig_P4

short dig_P5

short dig_P6

short dig_P7

short dig_P8

short dig_P9

uint16_t dig_T1

int16_t dig_T2

int16_t dig_T3

volatile uint8_t I2CMasterBuffer[BUFSIZE]

volatile uint32_t I2CReadLength

volatile uint8_t I2CSlaveBuffer[BUFSIZE]

volatile uint32_t I2CWriteLength

int32_t t_fine

int32_t t_fine_
